Commit a1430b6e authored by Andrew Maclean's avatar Andrew Maclean
Browse files

BlankPoint was not showing the blanked point

parent 856f71b8
No related branches found
No related tags found
1 merge request!327Add pythonic api examples 1
......@@ -7,9 +7,9 @@
#include <vtkRenderWindowInteractor.h>
#include <vtkRenderer.h>
#include <vtkStructuredGrid.h>
#include <vtkStructuredGridGeometryFilter.h>
#include <iostream>
#include <string>
int main(int, char*[])
{
......@@ -22,6 +22,7 @@ int main(int, char*[])
unsigned int gridSize = 8;
unsigned int counter = 0;
unsigned int ptIdx = 0;
// Create a 5x5 grid of points
for (unsigned int j = 0; j < gridSize; j++)
{
......@@ -31,6 +32,7 @@ int main(int, char*[])
{
points->InsertNextPoint(i, j, 2);
std::cout << "The different point is number " << counter << std::endl;
ptIdx = counter;
}
else
{
......@@ -41,12 +43,10 @@ int main(int, char*[])
}
}
// Specify the dimensions of the grid
// Specify the dimensions of the grid, set the points and blank one point.
structuredGrid->SetDimensions(gridSize, gridSize, 1);
structuredGrid->SetPoints(points);
structuredGrid->BlankPoint(27);
structuredGrid->BlankPoint(ptIdx);
structuredGrid->Modified();
// Check.
......@@ -62,20 +62,27 @@ int main(int, char*[])
};
// Should not be visible.
isVisible(27);
isVisible(ptIdx);
// Should be visible.
isVisible(7);
// Create a mapper and actor
// We need the geometry filter to ensure that the
// blanked point and surrounding faces is missing.
vtkNew<vtkStructuredGridGeometryFilter>geometryFilter;
geometryFilter->SetInputData(structuredGrid);
// Create a mapper and actor.
vtkNew<vtkDataSetMapper> gridMapper;
gridMapper->SetInputData(structuredGrid);
// gridMapper->SetInputData(structuredGrid);
gridMapper->SetInputConnection(geometryFilter->GetOutputPort());
vtkNew<vtkActor> gridActor;
gridActor->SetMapper(gridMapper);
gridActor->GetProperty()->EdgeVisibilityOn();
gridActor->GetProperty()->SetEdgeColor(colors->GetColor3d("Blue").GetData());
// Create a renderer, render window, and interactor
// Create a renderer, render window, and interactor.
vtkNew<vtkRenderer> renderer;
vtkNew<vtkRenderWindow> renderWindow;
renderWindow->AddRenderer(renderer);
......@@ -84,11 +91,11 @@ int main(int, char*[])
vtkNew<vtkRenderWindowInteractor> renderWindowInteractor;
renderWindowInteractor->SetRenderWindow(renderWindow);
// Add the actor to the scene
// Add the actor to the scene.
renderer->AddActor(gridActor);
renderer->SetBackground(colors->GetColor3d("ForestGreen").GetData());
// Render and interact
// Render and interact.
renderWindow->Render();
renderWindowInteractor->Start();
......
......@@ -7,6 +7,7 @@ import vtkmodules.vtkRenderingOpenGL2
from vtkmodules.vtkCommonColor import vtkNamedColors
from vtkmodules.vtkCommonCore import vtkPoints
from vtkmodules.vtkCommonDataModel import vtkStructuredGrid
from vtkmodules.vtkFiltersGeometry import vtkStructuredGridGeometryFilter
from vtkmodules.vtkRenderingCore import (
vtkActor,
vtkDataSetMapper,
......@@ -19,46 +20,49 @@ from vtkmodules.vtkRenderingCore import (
def main():
colors = vtkNamedColors()
structured_grid = vtkStructuredGrid()
points = vtkPoints()
grid_size = 8
counter = 0
pt_idx = 0
# Create a 5x5 grid of points
for j in range(0, grid_size):
for i in range(0, grid_size):
if i == 3 and j == 3: # Make one point higher than the rest.
points.InsertNextPoint(i, j, 2)
print('The different point is number ', counter)
print(f'The different point is number {counter}.')
pt_idx = counter
else:
# Make most of the points the same height.
points.InsertNextPoint(i, j, 0)
counter += 1
# Specify the dimensions of the grid.
structured_grid = vtkStructuredGrid()
# Specify the dimensions of the grid, set the points and blank one point.
structured_grid.SetDimensions(grid_size, grid_size, 1)
structured_grid.SetPoints(points)
structured_grid.BlankPoint(27)
structured_grid.Modified()
structured_grid.BlankPoint(pt_idx)
# Check.
def is_visible(pt_num):
if structured_grid.IsPointVisible(pt_num):
return f'Point {pt_num} is visible.'
return f'Point {pt_num:2d} is visible.'
else:
return f'Point {pt_num} is not visible.'
return f'Point {pt_num:2d} is not visible.'
# Should not be visible.
print(is_visible(27))
print(is_visible(pt_idx))
# Should be visible.
print(is_visible(7))
# We need the geometry filter to ensure that the
# blanked point and surrounding faces is missing.
geometry_filter = vtkStructuredGridGeometryFilter()
geometry_filter.SetInputData(structured_grid)
# Create a mapper and actor.
grid_mapper = vtkDataSetMapper()
grid_mapper.SetInputData(structured_grid)
grid_mapper.SetInputConnection(geometry_filter.GetOutputPort())
grid_actor = vtkActor()
grid_actor.SetMapper(grid_mapper)
......

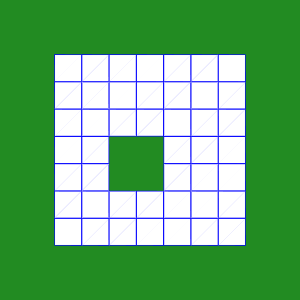

src/Testing/Baseline/Cxx/StructuredGrid/TestBlankPoint.png

129 B | W: | H:

src/Testing/Baseline/Cxx/StructuredGrid/TestBlankPoint.png

129 B | W: | H:

src/Testing/Baseline/Cxx/StructuredGrid/TestBlankPoint.png
src/Testing/Baseline/Cxx/StructuredGrid/TestBlankPoint.png
src/Testing/Baseline/Cxx/StructuredGrid/TestBlankPoint.png
src/Testing/Baseline/Cxx/StructuredGrid/TestBlankPoint.png
  • 2-up
  • Swipe
  • Onion skin
src/Testing/Baseline/Python/StructuredGrid/TestBlankPoint.png

129 B | W: | H:

src/Testing/Baseline/Python/StructuredGrid/TestBlankPoint.png

129 B | W: | H:

src/Testing/Baseline/Python/StructuredGrid/TestBlankPoint.png
src/Testing/Baseline/Python/StructuredGrid/TestBlankPoint.png
src/Testing/Baseline/Python/StructuredGrid/TestBlankPoint.png
src/Testing/Baseline/Python/StructuredGrid/TestBlankPoint.png
  • 2-up
  • Swipe
  • Onion skin
