Adding ImageProcessing examples

src/PythonicAPI/ImageProcessing/Attenuation.md

+### Description
+

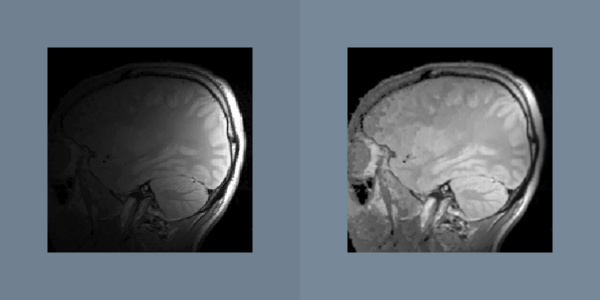

+This MRI image illustrates attenuation that can occur due to sensor position. The artifact is removed by dividing by the attenuation profile determined manually. This histograms shows how the artifact hides information in the form of scalar value clusters.
+
+!!! info
+    See [this figure](../../../VTKBook/10Chapter10/#Figure%2010-6) in [Chapter 10](../../../VTKBook/10Chapter10) the [VTK Textbook](../../../VTKBook/01Chapter1).

src/PythonicAPI/ImageProcessing/Attenuation.py

+#!/usr/bin/env python3
+
+from dataclasses import dataclass
+
+# noinspection PyUnresolvedReferences
+import vtkmodules.vtkRenderingOpenGL2
+from vtkmodules.vtkCommonColor import vtkNamedColors
+from vtkmodules.vtkCommonDataModel import vtkSphere
+from vtkmodules.vtkIOImage import vtkImageReader2Factory
+from vtkmodules.vtkImagingCore import (
+    vtkImageCast,
+    vtkImageShiftScale
+)
+from vtkmodules.vtkImagingGeneral import vtkImageGaussianSmooth
+from vtkmodules.vtkImagingHybrid import vtkSampleFunction
+from vtkmodules.vtkImagingMath import vtkImageMathematics
+from vtkmodules.vtkInteractionStyle import vtkInteractorStyleImage
+from vtkmodules.vtkRenderingCore import (
+    vtkImageActor,
+    vtkRenderWindow,
+    vtkRenderWindowInteractor,
+    vtkRenderer
+)
+
+
+def get_program_parameters():
+    import argparse
+    description = 'This MRI image illustrates attenuation that can occur due to sensor position.'
+    epilogue = '''
+    The artifact is removed by dividing by the attenuation profile determined manually.
+    '''
+    parser = argparse.ArgumentParser(description=description, epilog=epilogue,
+                                     formatter_class=argparse.RawDescriptionHelpFormatter)
+    parser.add_argument('filename', help='AttenuationArtifact.pgm.')
+    args = parser.parse_args()
+    return args.filename
+
+
+def main():
+    colors = vtkNamedColors()
+
+    file_name = get_program_parameters()
+
+    # Read the image.
+    reader = vtkImageReader2Factory().CreateImageReader2(file_name)
+    reader.file_name = file_name
+
+    cast = vtkImageCast(output_scalar_type=ImageCastOutputScalarType().VTK_DOUBLE)
+
+    # Get rid of the discrete scalars.
+    smooth = vtkImageGaussianSmooth(standard_deviations=(0.8, 0.8, 0))
+
+    m1 = vtkSphere(center=(310, 130, 0), radius=0)
+    m2 = vtkSampleFunction(implicit_function=m1, model_bounds=(0, 264, 0, 264, 0, 1), sample_dimensions=(264, 264, 1))
+    m3 = vtkImageShiftScale(scale=0.000095)
+
+    div = vtkImageMathematics(operation=ImageMathematicsOperation().VTK_MULTIPLY)
+
+    # Create the actors.
+    color_window = 256.0
+    color_level = 127.5
+    original_actor = vtkImageActor()
+    original_actor.property.color_window = color_window
+    original_actor.property.color_level = color_level
+
+    filtered_actor = vtkImageActor()
+
+    # Define the viewport ranges.
+    # (xmin, ymin, xmax, ymax)
+    original_viewport = [0.0, 0.0, 0.5, 1.0]
+    filtered_viewport = [0.5, 0.0, 1.0, 1.0]
+
+    # Set up the pipelines.
+    p = reader >> cast
+    p >> original_actor.mapper
+    (p >> smooth, m2 >> m3) >> div >> filtered_actor.mapper
+
+    # Set up the renderers.
+    original_renderer = vtkRenderer(background=colors.GetColor3d('SlateGray'), viewport=original_viewport)
+    filtered_renderer = vtkRenderer(background=colors.GetColor3d('LightSlateGray'), viewport=filtered_viewport)
+
+    original_renderer.AddActor(original_actor)
+    filtered_renderer.AddActor(filtered_actor)
+
+    original_renderer.ResetCamera()
+    filtered_renderer.ResetCamera()
+
+    render_window = vtkRenderWindow(size=(600, 300), window_name='Attenuation')
+    render_window.AddRenderer(original_renderer)
+    render_window.AddRenderer(filtered_renderer)
+
+    render_window_interactor = vtkRenderWindowInteractor()
+    style = vtkInteractorStyleImage()
+
+    render_window_interactor.SetInteractorStyle(style)
+
+    render_window_interactor.SetRenderWindow(render_window)
+    render_window_interactor.Initialize()
+
+    render_window_interactor.Start()
+
+
+@dataclass(frozen=True)
+class ImageCastOutputScalarType:
+    VTK_CHAR: int = 2
+    VTK_UNSIGNED_CHAR: int = 3
+    VTK_SHORT: int = 4
+    VTK_UNSIGNED_SHORT: int = 5
+    VTK_INT: int = 6
+    VTK_UNSIGNED_INT: int = 7
+    VTK_LONG: int = 8
+    VTK_UNSIGNED_LONG: int = 9
+    VTK_FLOAT: int = 10
+    VTK_DOUBLE: int = 11
+
+
+@dataclass(frozen=True)
+class ImageMathematicsOperation:
+    VTK_ADD: int = 0
+    VTK_SUBTRACT: int = 1
+    VTK_MULTIPLY: int = 2
+    VTK_DIVIDE: int = 3
+    VTK_INVERT: int = 4
+    VTK_SIN: int = 5
+    VTK_COS: int = 6
+    VTK_EXP: int = 7
+    VTK_LOG: int = 8
+    VTK_ABS: int = 9
+    VTK_SQR: int = 10
+    VTK_SQRT: int = 11
+    VTK_MIN: int = 12
+    VTK_MAX: int = 13
+    VTK_ATAN: int = 14
+    VTK_ATAN2: int = 15
+    VTK_MULTIPLYBYK: int = 16
+    VTK_ADDC: int = 17
+    VTK_CONJUGATE: int = 18
+    VTK_COMPLEX_MULTIPLY: int = 19
+    VTK_REPLACECBYK: int = 20
+
+
+if __name__ == '__main__':
+    main()

src/PythonicAPI/ImageProcessing/EnhanceEdges.md

+### Description
+
+High-pass filters can also be used to compress the range of an image. Since low frequencies account for much of the dynamic range of an image but carry little information, a high-pass filter can significantly decrease an image’s scalar range and emphasize hidden details. The Laplacian filter, which is a second derivative operation, is one implementation of a high-pass filter. It eliminates constant and low frequencies leaving only high-frequency edges. The output of the Laplacian can be subtracted from the original image to produce edge enhancement or sharpening of an image.
+

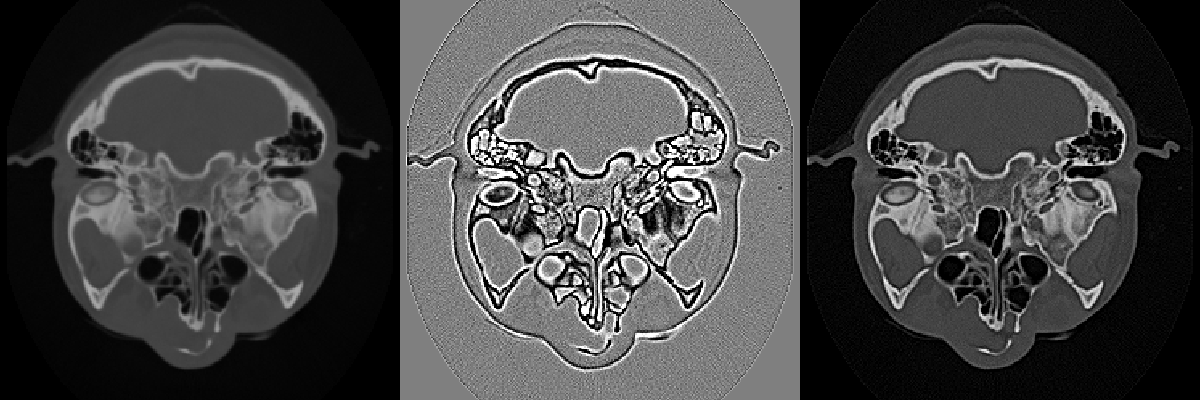

+This example subtracts the Laplacian (middle) from the original image (left) resulting in edge enhancement or a sharpening operation (right).
+
+!!! info
+    See [this figure](../../../VTKBook/10Chapter10/#Figure%2010-9) in [Chapter 10](../../../VTKBook/10Chapter10) the [VTK Textbook](../../../VTKBook/01Chapter1).

src/PythonicAPI/ImageProcessing/EnhanceEdges.py

+#!/usr/bin/env python3
+
+from dataclasses import dataclass
+
+# noinspection PyUnresolvedReferences
+import vtkmodules.vtkRenderingOpenGL2
+from vtkmodules.vtkIOImage import vtkImageReader2Factory
+from vtkmodules.vtkImagingColor import vtkImageMapToWindowLevelColors
+from vtkmodules.vtkImagingCore import vtkImageCast
+from vtkmodules.vtkImagingGeneral import vtkImageLaplacian
+from vtkmodules.vtkImagingMath import vtkImageMathematics
+from vtkmodules.vtkInteractionStyle import vtkInteractorStyleImage
+from vtkmodules.vtkRenderingCore import (
+    vtkImageActor,
+    vtkRenderWindow,
+    vtkRenderWindowInteractor,
+    vtkRenderer
+)
+
+
+def get_program_parameters():
+    import argparse
+    description = 'High-pass filters can extract and enhance edges in an image.'
+    epilogue = '''
+    Subtraction of the Laplacian (middle) from the original image (left) results
+     in edge enhancement or a sharpening operation (right).
+    '''
+    parser = argparse.ArgumentParser(description=description, epilog=epilogue,
+                                     formatter_class=argparse.RawDescriptionHelpFormatter)
+    parser.add_argument('filename', help='FullHead.mhd.')
+    args = parser.parse_args()
+    return args.filename
+
+
+def main():
+    file_name = get_program_parameters()
+
+    # Read the image.
+    reader = vtkImageReader2Factory().CreateImageReader2(file_name)
+    reader.file_name = file_name
+    reader.update()
+
+    scalar_range = list()
+    for i in range(0, 2):
+        scalar_range.append(reader.GetOutput().GetPointData().GetScalars().GetRange()[i])
+    print("Range:", scalar_range)
+    middle_slice = 22
+
+    # Work with triple images.
+    cast = vtkImageCast(output_scalar_type=ImageCastOutputScalarType().VTK_DOUBLE)
+
+    laplacian = vtkImageLaplacian(dimensionality=3)
+
+    enhance = vtkImageMathematics(operation=ImageMathematicsOperation().VTK_SUBTRACT)
+
+    color_window = (scalar_range[1] - scalar_range[0])
+    color_level = color_window / 2
+
+    # Map the image through the lookup table.
+    original_color = vtkImageMapToWindowLevelColors(window=color_window, level=color_level)
+
+    display_extent = list()
+    data_extent = reader.data_extent
+    for i in range(0, 4):
+        display_extent.append(data_extent[i])
+    for i in range(0, 2):
+        display_extent.append(middle_slice)
+
+    original_actor = vtkImageActor(display_extent=display_extent)
+    original_actor.property.interpolation_type = VolumePropertyInterpolationType().VTK_NEAREST_INTERPOLATION
+
+    laplacian_color = vtkImageMapToWindowLevelColors(window=1000, level=0)
+    laplacian_actor = vtkImageActor(display_extent=original_actor.GetDisplayExtent())
+    laplacian_actor.property.interpolation_type = VolumePropertyInterpolationType().VTK_NEAREST_INTERPOLATION
+
+    enhanced_color = vtkImageMapToWindowLevelColors(window=color_window, level=color_level)
+    enhanced_actor = vtkImageActor(display_extent=original_actor.GetDisplayExtent())
+    enhanced_actor.property.interpolation_type = VolumePropertyInterpolationType().VTK_NEAREST_INTERPOLATION
+
+    # Set up the pipelines.
+    reader >> original_color >> original_actor.mapper
+    p = reader >> cast
+    q = p >> laplacian
+    q >> laplacian_color >> laplacian_actor.mapper
+    (p, q) >> enhance >> enhanced_color >> enhanced_actor.mapper
+
+    # Setup the renderers.
+    original_renderer = vtkRenderer()
+    laplacian_renderer = vtkRenderer()
+    enhanced_renderer = vtkRenderer()
+
+    original_renderer.AddActor(original_actor)
+    laplacian_renderer.AddActor(laplacian_actor)
+    enhanced_renderer.AddActor(enhanced_actor)
+
+    renderers = list()
+    renderers.append(original_renderer)
+    renderers.append(laplacian_renderer)
+    renderers.append(enhanced_renderer)
+
+    # Setup viewports for the renderers.
+    renderer_size = 400
+    x_grid_dimensions = 3
+    y_grid_dimensions = 1
+
+    ren_win_size = (renderer_size * x_grid_dimensions, renderer_size * y_grid_dimensions)
+    render_window = vtkRenderWindow(size=ren_win_size, window_name='EnhanceEdges')
+    # render_window.SetSize(renderer_size * x_grid_dimensions, renderer_size * y_grid_dimensions)
+    for row in range(0, y_grid_dimensions):
+        for col in range(x_grid_dimensions):
+            index = row * x_grid_dimensions + col
+            # (xmin, ymin, xmax, ymax)
+            viewport = [float(col) / x_grid_dimensions, float(y_grid_dimensions - (row + 1)) / y_grid_dimensions,
+                        float(col + 1) / x_grid_dimensions, float(y_grid_dimensions - row) / y_grid_dimensions]
+            renderers[index].SetViewport(viewport)
+            render_window.AddRenderer(renderers[index])
+
+    render_window_interactor = vtkRenderWindowInteractor()
+    style = vtkInteractorStyleImage()
+
+    render_window_interactor.SetInteractorStyle(style)
+    render_window_interactor.SetRenderWindow(render_window)
+
+    # Renderers share one camera.
+    render_window.Render()
+    renderers[0].GetActiveCamera().Dolly(1.5)
+    renderers[0].ResetCameraClippingRange()
+
+    for r in range(1, len(renderers)):
+        renderers[r].SetActiveCamera(renderers[0].GetActiveCamera())
+    render_window_interactor.Initialize()
+    render_window_interactor.Start()
+
+
+@dataclass(frozen=True)
+class ImageCastOutputScalarType:
+    VTK_CHAR: int = 2
+    VTK_UNSIGNED_CHAR: int = 3
+    VTK_SHORT: int = 4
+    VTK_UNSIGNED_SHORT: int = 5
+    VTK_INT: int = 6
+    VTK_UNSIGNED_INT: int = 7
+    VTK_LONG: int = 8
+    VTK_UNSIGNED_LONG: int = 9
+    VTK_FLOAT: int = 10
+    VTK_DOUBLE: int = 11
+
+
+@dataclass(frozen=True)
+class ImageMathematicsOperation:
+    VTK_ADD: int = 0
+    VTK_SUBTRACT: int = 1
+    VTK_MULTIPLY: int = 2
+    VTK_DIVIDE: int = 3
+    VTK_INVERT: int = 4
+    VTK_SIN: int = 5
+    VTK_COS: int = 6
+    VTK_EXP: int = 7
+    VTK_LOG: int = 8
+    VTK_ABS: int = 9
+    VTK_SQR: int = 10
+    VTK_SQRT: int = 11
+    VTK_MIN: int = 12
+    VTK_MAX: int = 13
+    VTK_ATAN: int = 14
+    VTK_ATAN2: int = 15
+    VTK_MULTIPLYBYK: int = 16
+    VTK_ADDC: int = 17
+    VTK_CONJUGATE: int = 18
+    VTK_COMPLEX_MULTIPLY: int = 19
+    VTK_REPLACECBYK: int = 20
+
+
+@dataclass(frozen=True)
+class VolumePropertyInterpolationType:
+    VTK_NEAREST_INTERPOLATION: int = 0
+    VTK_LINEAR_INTERPOLATION: int = 1
+    VTK_CUBIC_INTERPOLATION: int = 2
+
+
+if __name__ == '__main__':
+    main()

src/PythonicAPI/ImageProcessing/GaussianSmooth.md

+### Description
+

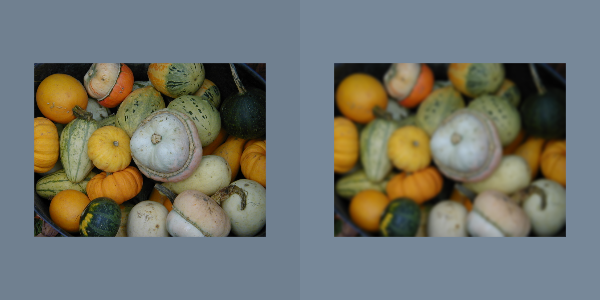

+Low-pass filters can be implemented as convolution with a Gaussian kernel. The Gaussian kernel displayed on top has been magnified for this figure.
+
+!!! info
+    See [this figure](../../../VTKBook/10Chapter10/#Figure%2010-2) in [Chapter 10](../../../VTKBook/10Chapter10) the [VTK Textbook](../../../VTKBook/01Chapter1).

src/PythonicAPI/ImageProcessing/GaussianSmooth.py

+#!/usr/bin/env python3
+
+from dataclasses import dataclass
+
+# noinspection PyUnresolvedReferences
+import vtkmodules.vtkRenderingOpenGL2
+from vtkmodules.vtkCommonColor import vtkNamedColors
+from vtkmodules.vtkIOImage import vtkImageReader2Factory
+from vtkmodules.vtkImagingCore import vtkImageCast
+from vtkmodules.vtkImagingGeneral import vtkImageGaussianSmooth
+from vtkmodules.vtkInteractionStyle import vtkInteractorStyleImage
+from vtkmodules.vtkRenderingCore import (
+    vtkImageActor,
+    vtkRenderWindow,
+    vtkRenderWindowInteractor,
+    vtkRenderer
+)
+
+
+def get_program_parameters():
+    import argparse
+    description = 'Low-pass filters can be implemented as convolution with a Gaussian kernel.'
+    epilogue = '''
+    '''
+    parser = argparse.ArgumentParser(description=description, epilog=epilogue,
+                                     formatter_class=argparse.RawDescriptionHelpFormatter)
+    parser.add_argument('filename', help='Gourds.png.')
+    args = parser.parse_args()
+    return args.filename
+
+
+def main():
+    colors = vtkNamedColors()
+
+    file_name = get_program_parameters()
+
+    # Read the image.
+    reader = vtkImageReader2Factory().CreateImageReader2(file_name)
+    reader.file_name = file_name
+
+    # Process the image.
+    cast = vtkImageCast(output_scalar_type=ImageCastOutputScalarType().VTK_FLOAT)
+
+    smoothing_filter = vtkImageGaussianSmooth(dimensionality=2, standard_deviations=(4.0, 4.0),
+                                              radius_factors=(2.0, 2.0))
+
+    # Create the actors.
+    original_actor = vtkImageActor()
+    filtered_actor = vtkImageActor()
+
+    # Set up the pipelines.
+    reader >> original_actor.mapper
+    reader >> cast >> smoothing_filter >> filtered_actor.mapper
+
+    # Define the viewport ranges.
+    # (xmin, ymin, xmax, ymax)
+    original_viewport = [0.0, 0.0, 0.5, 1.0]
+    filtered_viewport = [0.5, 0.0, 1.0, 1.0]
+
+    # Setup the renderers.
+    original_renderer = vtkRenderer(background=colors.GetColor3d("SlateGray"), viewport=original_viewport)
+    filtered_renderer = vtkRenderer(background=colors.GetColor3d("LightSlateGray"), viewport=filtered_viewport)
+
+    original_renderer.AddActor(original_actor)
+    filtered_renderer.AddActor(filtered_actor)
+
+    original_renderer.ResetCamera()
+    filtered_renderer.ResetCamera()
+
+    render_window = vtkRenderWindow(size=(600, 300), window_name='GaussianSmooth')
+    render_window.AddRenderer(original_renderer)
+    render_window.AddRenderer(filtered_renderer)
+
+    render_window_interactor = vtkRenderWindowInteractor()
+    style = vtkInteractorStyleImage()
+
+    render_window_interactor.SetInteractorStyle(style)
+
+    render_window_interactor.SetRenderWindow(render_window)
+    render_window_interactor.Initialize()
+
+    render_window_interactor.Start()
+
+
+@dataclass(frozen=True)
+class ImageCastOutputScalarType:
+    VTK_CHAR: int = 2
+    VTK_UNSIGNED_CHAR: int = 3
+    VTK_SHORT: int = 4
+    VTK_UNSIGNED_SHORT: int = 5
+    VTK_INT: int = 6
+    VTK_UNSIGNED_INT: int = 7
+    VTK_LONG: int = 8
+    VTK_UNSIGNED_LONG: int = 9
+    VTK_FLOAT: int = 10
+    VTK_DOUBLE: int = 11
+
+
+if __name__ == '__main__':
+    main()

src/PythonicAPI/ImageProcessing/VTKSpectrum.md

+### Description
+

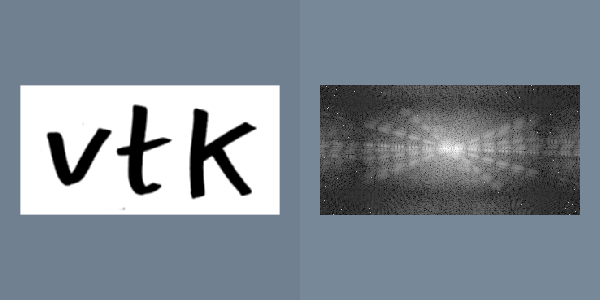

+The discrete Fourier transform changes an image from the spatial domain into the frequency domain, where each pixel represents a sinusoidal function. This example shows an image and its power spectrum displayed using a logarithmic transfer function.
+
+!!! info
+    See [Figure 10-10](../../../VTKBook/10Chapter10/#Figure%2010-10) in [Chapter 10](../../../VTKBook/10Chapter10) the [VTK Textbook](../../../VTKBook/01Chapter1).

src/PythonicAPI/ImageProcessing/VTKSpectrum.py

+#!/usr/bin/env python3
+
+from dataclasses import dataclass
+
+# noinspection PyUnresolvedReferences
+import vtkmodules.vtkRenderingOpenGL2
+from vtkmodules.vtkCommonColor import vtkNamedColors
+from vtkmodules.vtkIOImage import vtkImageReader2Factory
+from vtkmodules.vtkImagingCore import vtkImageMapToColors
+from vtkmodules.vtkImagingFourier import (
+    vtkImageFFT,
+    vtkImageFourierCenter
+)
+from vtkmodules.vtkImagingMath import (
+    vtkImageLogarithmicScale,
+    vtkImageMagnitude
+)
+from vtkmodules.vtkInteractionStyle import vtkInteractorStyleImage
+from vtkmodules.vtkRenderingCore import (
+    vtkImageActor,
+    vtkRenderWindow,
+    vtkRenderWindowInteractor,
+    vtkRenderer,
+    vtkWindowLevelLookupTable
+)
+
+
+def get_program_parameters():
+    import argparse
+    description = 'The discrete Fourier transform.'
+    epilogue = '''
+    This changes an image from the spatial domain into the frequency domain,
+     where each pixel represents a sinusoidal function.
+    This figure shows an image and its power spectrum displayed using a logarithmic transfer function.
+    '''
+    parser = argparse.ArgumentParser(description=description, epilog=epilogue,
+                                     formatter_class=argparse.RawDescriptionHelpFormatter)
+    parser.add_argument('filename', help='vtks.pgm.')
+    args = parser.parse_args()
+    return args.filename
+
+
+def main():
+    colors = vtkNamedColors()
+
+    file_name = get_program_parameters()
+
+    # Read the image.
+    reader = vtkImageReader2Factory().CreateImageReader2(file_name)
+    reader.file_name = file_name
+
+    # The fft stuff.
+    fft = vtkImageFFT()
+    mag = vtkImageMagnitude()
+    center = vtkImageFourierCenter()
+    compress = vtkImageLogarithmicScale(constant=15)
+
+    # Create the actors.
+    original_actor = vtkImageActor()
+    original_actor.property.interpolation_type = VolumePropertyInterpolationType().VTK_NEAREST_INTERPOLATION
+
+    compressed_actor = vtkImageActor()
+    compressed_actor.property.interpolation_type = VolumePropertyInterpolationType().VTK_NEAREST_INTERPOLATION
+    create_image_actor(compressed_actor, 160, 120)
+
+    # Set up the pipelines.
+    reader >> original_actor.mapper
+    reader >> fft >> mag >> center >> compress >> compressed_actor.mapper
+
+    # Define the viewport ranges.
+    # (xmin, ymin, xmax, ymax)
+    original_viewport = [0.0, 0.0, 0.5, 1.0]
+    compressed_viewport = [0.5, 0.0, 1.0, 1.0]
+
+    # Setup the renderers.
+    original_renderer = vtkRenderer(background=colors.GetColor3d('SlateGray'), viewport=original_viewport)
+    compressed_renderer = vtkRenderer(background=colors.GetColor3d('LightSlateGray'), viewport=compressed_viewport)
+
+    original_renderer.AddActor(original_actor)
+    compressed_renderer.AddActor(compressed_actor)
+
+    original_renderer.ResetCamera()
+    compressed_renderer.ResetCamera()
+
+    render_window = vtkRenderWindow(size=(600, 300), window_name='VTKSpectrum')
+    render_window.AddRenderer(original_renderer)
+    render_window.AddRenderer(compressed_renderer)
+
+    render_window_interactor = vtkRenderWindowInteractor()
+    style = vtkInteractorStyleImage()
+    render_window_interactor.SetInteractorStyle(style)
+    render_window_interactor.SetRenderWindow(render_window)
+    render_window_interactor.Initialize()
+
+    render_window_interactor.Start()
+
+
+def create_image_actor(actor, color_window, color_level):
+    wlut = vtkWindowLevelLookupTable(window=color_window, level=color_level)
+    wlut.Build()
+
+    # Map the image through the lookup table.
+    color = vtkImageMapToColors(lookup_table=wlut)
+    actor.mapper.input >> color
+    color >> actor.mapper
+    return
+
+
+@dataclass(frozen=True)
+class VolumePropertyInterpolationType:
+    VTK_NEAREST_INTERPOLATION: int = 0
+    VTK_LINEAR_INTERPOLATION: int = 1
+    VTK_CUBIC_INTERPOLATION: int = 2
+
+
+if __name__ == '__main__':
+    main()
