Merge branch 'master' into 'master'

Added python code for ReadDICOMSeries.cxx

See merge request !310

src/Python.md

@@ -89,6 +89,8 @@ If you are new to VTK then these [tutorials](#tutorial) will help to get you sta
 | -------------- | ------------- | ------- |
 [HDRReader](/Python/IO/HDRReader) | Read a high-dynamic-range imaging file.
 [ReadDICOM](/Python/IO/ReadDICOM) | Read DICOM file.
+[ReadDICOMSeries](/Python/IO/ReadDICOMSeries) | This example demonstrates how to read a series of DICOM images and scroll through slices
+


 #### Output

src/Python/IO/ReadDICOMSeries.md

+### Description
+

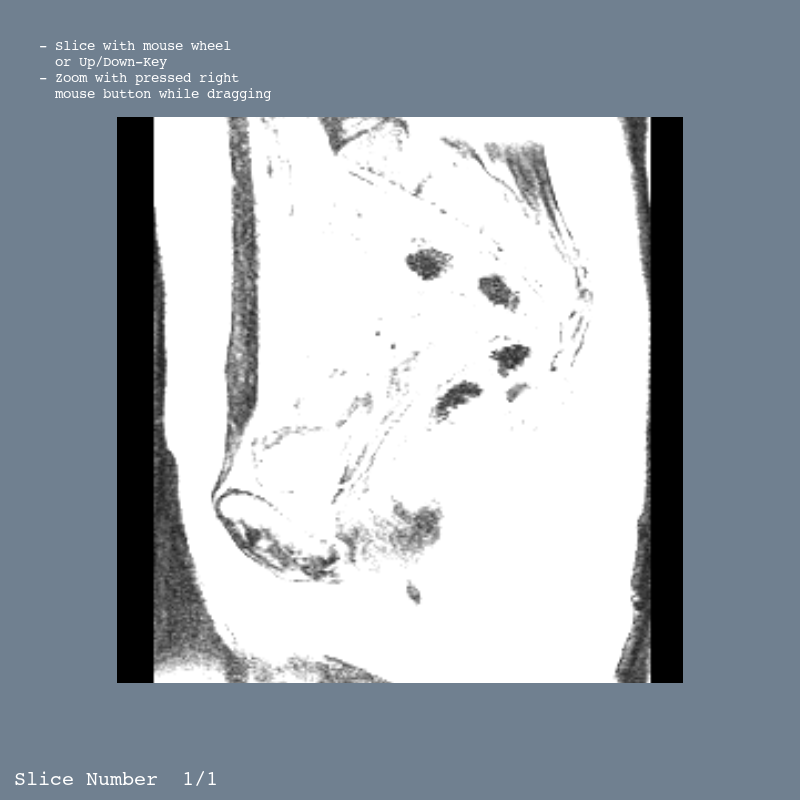

+This example demonstates how to read a series of DICOM images and how to scroll with the mousewheel or the up/down keys through all slices.
+Sample data are available as a zipped file (977 kB, 40 slices): <a id="raw-url" href="https://raw.githubusercontent.com/Kitware/vtk-examples/gh-pages/src/SupplementaryData/Cxx/IO/DicomTestImages.zip">DicomTestImages</a>
+
+!!! seealso
+    [ReadDICOM](../ReadDICOM).
\ No newline at end of file

src/Python/IO/ReadDicomSeries.py

+#!/usr/bin/env python3
+
+# noinspection PyUnresolvedReferences
+from vtkmodules.vtkCommonColor import vtkNamedColors
+from vtkmodules.vtkIOImage import vtkDICOMImageReader
+from vtkmodules.vtkInteractionImage import vtkImageViewer2
+from vtkmodules.vtkInteractionStyle import vtkInteractorStyleImage
+import vtkmodules.vtkRenderingContextOpenGL2
+from vtkmodules.vtkRenderingCore import (
+    vtkActor2D,
+    vtkRenderWindowInteractor,
+    vtkTextMapper,
+    vtkTextProperty
+    )
+
+#Helper class to format slice status message
+class StatusMessage:
+    @staticmethod
+    def format(slice:int,max_slice:int):
+        return f"Slice Number {slice+1}/{max_slice+1}"
+
+#Define own interaction style
+class MyVtkInteractorStyleImage(vtkInteractorStyleImage):
+    def __init__(self,parent=None):
+        super().__init__()
+        self.AddObserver("KeyPressEvent", self.keyPressEvent)
+        self.AddObserver("MouseWheelForwardEvent", self.mouseWheelForwardEvent)
+        self.AddObserver("MouseWheelBackwardEvent", self.mouseWheelBackwardEvent)
+        self.imageviewer=None
+        self.status_mapper=None
+        self.slice=0
+        self.min_slice=0
+        self.max_slice=0
+
+    def set_imageviewer(self, image_viewer):
+        self.imageviewer=image_viewer
+        self.min_slice=image_viewer.GetSliceMin()
+        self.max_slice=image_viewer.GetSliceMax()
+        self.slice=self.min_slice
+        print(f"Slicer: Min = {self.min_slice}, Max= {self.max_slice}")
+
+    def set_status_mapper(self, status_mapper):
+        self.status_mapper=status_mapper
+
+    def move_slice_forward(self):
+        if self.slice<self.max_slice:
+            self.slice+=1
+            print(f"MoveSliceForward :: Slice = {self.slice}")
+            self.imageviewer.SetSlice(self.slice)
+            msg=StatusMessage.format(self.slice,self.max_slice)
+            self.status_mapper.SetInput(msg)
+            self.imageviewer.Render()
+
+    def move_slice_backward(self):
+        if self.slice>self.min_slice:
+            self.slice-=1
+            print(f"MoveSliceBackrward :: Slice = {self.slice}")
+            self.imageviewer.SetSlice(self.slice)
+            msg=StatusMessage.format(self.slice,self.max_slice)
+            self.status_mapper.SetInput(msg)
+            self.imageviewer.Render()
+
+    def keyPressEvent(self,obj,event):
+        key=self.GetInteractor().GetKeySym()
+        if key=="Up":
+            self.move_slice_forward()
+        elif key=="Down":
+            self.move_slice_backward()
+
+    def mouseWheelForwardEvent(self,obj,event):
+        self.move_slice_forward()
+
+    def mouseWheelBackwardEvent(self,obj,event) :
+        self.move_slice_backward()
+
+#Read all the DICOM files in the specified directory.
+def get_program_parameters():
+    import argparse
+    description = 'Read DICOM series data'
+    epilogue = ''''''
+    parser = argparse.ArgumentParser(description=description, epilog=epilogue,
+                                     formatter_class=argparse.RawDescriptionHelpFormatter)
+    parser.add_argument('dirname', help='DicomTestImages.zip')
+    args = parser.parse_args()
+    return args.dirname
+
+def main():
+    colors=vtkNamedColors()
+    reader=vtkDICOMImageReader()
+    folder=get_program_parameters()
+    #Read DICOM files in the specified directory
+    reader.SetDirectoryName(folder)
+    reader.Update()
+
+    #Visualilze
+    image_viewer= vtkImageViewer2()
+    image_viewer.SetInputConnection(reader.GetOutputPort())
+    #Slice status message
+    slice_text_prop=vtkTextProperty()
+    slice_text_prop.SetFontFamilyToCourier()
+    slice_text_prop.SetFontSize(20)
+    slice_text_prop.SetVerticalJustificationToBottom()
+    slice_text_prop.SetJustificationToLeft()
+    #Slice status message
+    slice_text_mapper=vtkTextMapper()
+    msg=StatusMessage.format(image_viewer.GetSliceMin(),image_viewer.GetSliceMax())
+    slice_text_mapper.SetInput(msg)
+    slice_text_mapper.SetTextProperty(slice_text_prop)
+
+    slice_text_actor=vtkActor2D()
+    slice_text_actor.SetMapper(slice_text_mapper)
+    slice_text_actor.SetPosition(15,10)
+
+    #usage hint message
+    usage_text_prop=vtkTextProperty()
+    usage_text_prop.SetFontFamilyToCourier()
+    usage_text_prop.SetFontSize(14)
+    usage_text_prop.SetVerticalJustificationToTop()
+    usage_text_prop.SetJustificationToLeft()
+    usage_text_mapper=vtkTextMapper()
+    usage_text_mapper.SetInput(
+        "Slice with mouse wheel\n  or Up/Down-Key\n- Zoom with pressed right\n "
+        " mouse button while dragging"
+    )
+    usage_text_mapper.SetTextProperty(usage_text_prop)
+
+    usage_text_actor=vtkActor2D ()
+    usage_text_actor.SetMapper(usage_text_mapper)
+    usage_text_actor.GetPositionCoordinate().SetCoordinateSystemToNormalizedDisplay()
+    usage_text_actor.GetPositionCoordinate().SetValue(0.05, 0.95)
+
+    #Create an interactor with our own style (inherit from
+    #vtkInteractorStyleImage in order to catch mousewheel and key events.
+    render_window_interactor= vtkRenderWindowInteractor()
+    my_interactor_style=MyVtkInteractorStyleImage()
+
+   #Make imageviewer2 and sliceTextMapper visible to our interactorstyle
+   #to enable slice status message updates when  scrolling through the slices.
+    my_interactor_style.set_imageviewer(image_viewer)
+    my_interactor_style.set_status_mapper(slice_text_mapper)
+
+    #Make the interactor use our own interactorstyle
+    #cause SetupInteractor() is defining it's own default interatorstyle
+    #this must be called after SetupInteractor().
+    #renderWindowInteractor.SetInteractorStyle(myInteractorStyle);
+    image_viewer.SetupInteractor(render_window_interactor)
+    render_window_interactor.SetInteractorStyle(my_interactor_style)
+    render_window_interactor.Render()
+
+    #Add slice status message and usage hint message to the renderer.
+    image_viewer.GetRenderer().AddActor2D(slice_text_actor)
+    image_viewer.GetRenderer().AddActor2D(usage_text_actor)
+
+    # Initialize rendering and interaction.
+    image_viewer.Render()
+    image_viewer.GetRenderer().ResetCamera()
+    image_viewer.GetRenderer().SetBackground(colors.GetColor3d("SlateGray"))
+    image_viewer.GetRenderWindow().SetSize(800, 800)
+    image_viewer.GetRenderWindow().SetWindowName("ReadDICOMSeries")
+    image_viewer.Render()
+    render_window_interactor.Start()
+
+if __name__ == "__main__":
+    main()
\ No newline at end of file
