Added TexturedSphere, ResizeImage

src/Cxx/Images/ResizeImage.md

@@ -2,7 +2,7 @@

 Resize an image using a sinc interpolator. Without command line arguments, the example resizes a synthetic image. An image file can be passed on the command lines. The new dimensions can also be passed as well as an integer specifying the window for sinc interpolator. See vtkImageSincInterpolator for details. A -1 turns off interpolation.

-Several window functions are provided. See [this article](https://en.wikipedia.org/wiki/Window_function) for a description og window functions.
+Several window functions are provided. See [this article](https://en.wikipedia.org/wiki/Window_function) for a description of window functions.

 vtkImageResize maintains the physical size of the image.


src/Cxx/Texture/TexturedSphere.cxx

 #include <vtkActor.h>
+#include <vtkCamera.h>
 #include <vtkImageReader.h>
 #include <vtkImageReader2Factory.h>
 #include <vtkNamedColors.h>
@@ -15,7 +16,6 @@
 #include <vtkTransformTextureCoords.h>

 #include <iostream>
-#include <string>

 int main(int argc, char* argv[])
 {
@@ -34,12 +34,12 @@ int main(int argc, char* argv[])
   }
   else
   {
-    translate[0] = 0.0;
+    translate[0] = 0.25;
   }
   translate[1] = 0.0;
   translate[2] = 0.0;
-  std::cout << translate[0] << ", " << translate[1] << ", " << translate[2]
-            << "\n";
+  std::cout << "Translate: (" << translate[0] << ", " << translate[1] << ", "
+            << translate[2] << ")\n";
   // Create a sphere with texture coordinates
   vtkNew<vtkTexturedSphereSource> source;
   source->SetThetaResolution(100);
@@ -74,6 +74,12 @@ int main(int argc, char* argv[])
   renderWindow->AddRenderer(renderer);
   renderWindow->SetWindowName("TexturedSphere");

+  renderer->ResetCamera();
+  // Orient so we are directly above Null Island!
+  // The location is at (0°N 0°E), i.e., where the
+  //  prime meridian and the equator intersect.
+  renderer->GetActiveCamera()->Elevation(-90);
+
   vtkNew<vtkRenderWindowInteractor> renWinInteractor;
   renWinInteractor->SetRenderWindow(renderWindow);


src/PythonicAPI.md

@@ -492,6 +492,8 @@ This section includes ?vtkUnstructuredGrid?.
 [TextureCutSphere](/PythonicAPI/Texture/TextureCutSphere) | Examples of texture thresholding using a boolean combination of two planes to cut nested spheres.
 [TexturePlane](/PythonicAPI/Texture/TexturePlane) | Example of texture mapping.
 [TextureThreshold](/PythonicAPI/Texture/TextureThreshold) | Demonstrate the use of scalar thresholds to show values of flow density on three planes.
+[TexturedSphere](/PythonicAPI/Texture/TexturedSphere) | Texture a sphere.
+

 ## Tutorial

@@ -646,6 +648,7 @@ See [this tutorial](http://www.vtk.org/Wiki/VTK/Tutorials/3DDataTypes) for a bri
 [RGBToHSI](/PythonicAPI/Images/RGBToHSI) | Convert RGB to HSI.
 [RGBToHSV](/PythonicAPI/Images/RGBToHSV) | Convert RGB to HSV.
 [RGBToYIQ](/PythonicAPI/Images/RGBToYIQ) | Convert RGB to YIQ.
+[ResizeImage](/PythonicAPI/Images/ResizeImage) | Resize an image using a sinc interpolator.
 [VTKSpectrum](/PythonicAPI/ImageProcessing/VTKSpectrum) | The discrete Fourier transform changes an image from the spatial domain into the frequency domain, where each pixel represents a sinusoidal function. This figure shows an image and its power spectrum displayed using a logarithmic transfer function.

 ## Widgets

src/PythonicAPI/Images/ResizeImage.md

+### Description
+

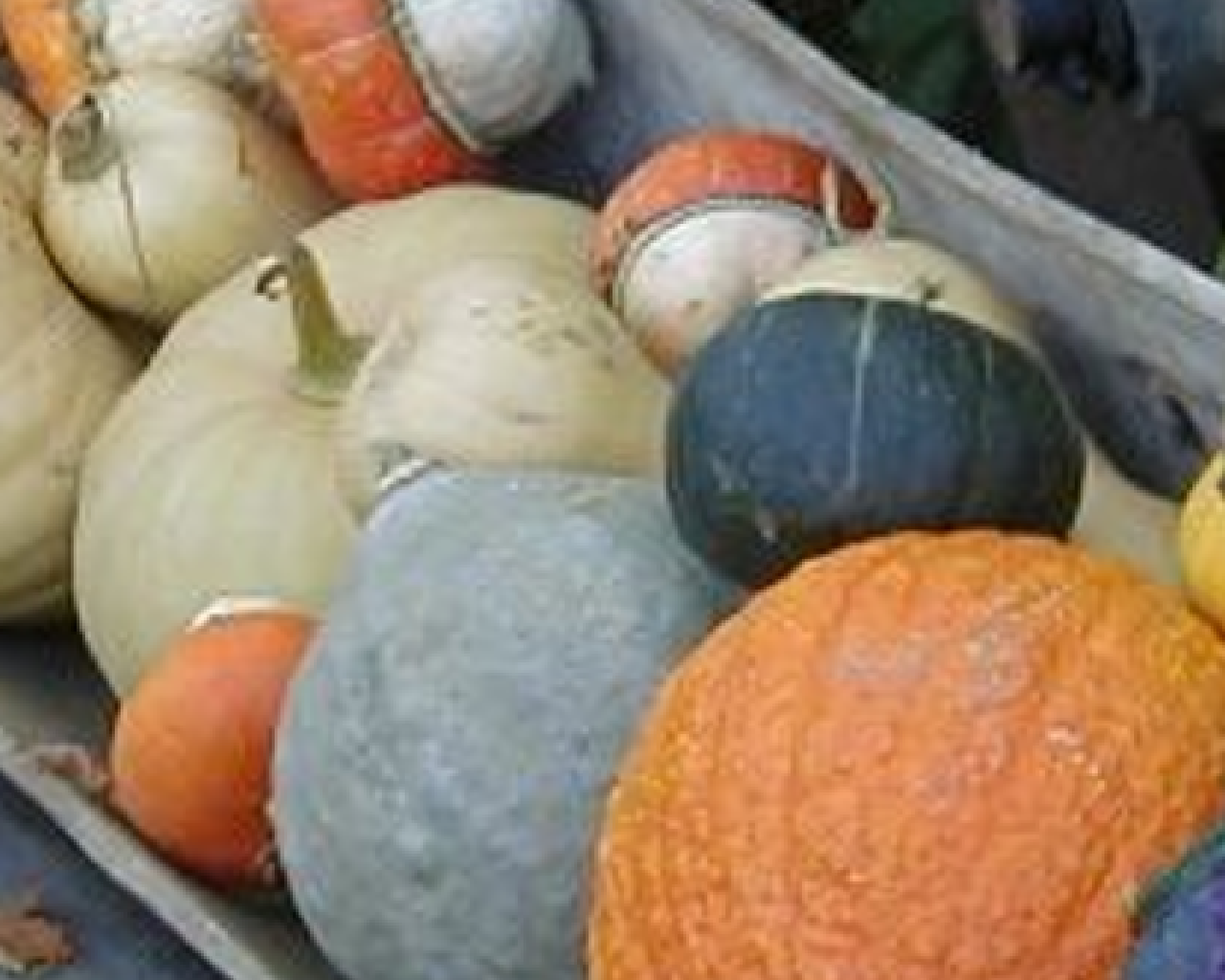

+Resize an image using a sinc interpolator. Without command line arguments, the example resizes a synthetic image. An image file can be passed on the command lines. The new dimensions can also be passed as well as an integer specifying the window for sinc interpolator. See vtkImageSincInterpolator for details. A -1 turns off interpolation.
+
+Several window functions are provided. See [this article](https://en.wikipedia.org/wiki/Window_function) for a description of window functions.
+
+vtkImageResize maintains the physical size of the image.
+
+!!! note
+    This example was inspired by a question asked by *Qiang Wang*.
+
+!!! seealso
+    The paper ["Some windows with very good sidelobe behavior"](http://mwlab.pmo.ac.cn/~lzh/about_work/dspfftpaper/Some_Windows_with_Very_Good_Sidelobe_Behavior.pdf) describes the windows implemented in vtkImageSincInterpolator.

src/PythonicAPI/Images/ResizeImage.py

+#!/usr/bin/env python3
+
+from pathlib import Path
+
+# noinspection PyUnresolvedReferences
+import vtkmodules.vtkInteractionStyle
+# noinspection PyUnresolvedReferences
+import vtkmodules.vtkRenderingOpenGL2
+from vtkmodules.vtkCommonColor import vtkNamedColors
+from vtkmodules.vtkIOImage import vtkImageReader2Factory
+from vtkmodules.vtkImagingCore import (
+    vtkImageResize,
+    vtkImageSincInterpolator
+)
+from vtkmodules.vtkImagingSources import vtkImageCanvasSource2D
+from vtkmodules.vtkInteractionStyle import vtkInteractorStyleImage
+from vtkmodules.vtkRenderingCore import (
+    vtkImageActor,
+    vtkRenderer,
+    vtkRenderWindow,
+    vtkRenderWindowInteractor
+)
+
+
+def get_program_parameters():
+    def to_int_range(x):
+        try:
+            x = int(x)
+        except ValueError:
+            raise argparse.ArgumentTypeError(f'This value: {x} is not a integer literal')
+        if x < -1 or x > 10:
+            raise argparse.ArgumentTypeError(f'The absolute value of {x} must be in the range [-1...10]')
+        return x
+
+    import argparse
+    description = 'ResizeImage.'
+    epilogue = '''
+    Try: -f ../../../src/Testing/Data/Gourds2.jpg -sx 1280 -sy 1024 -w 5
+    '''
+    parser = argparse.ArgumentParser(description=description, epilog=epilogue,
+                                     formatter_class=argparse.RawDescriptionHelpFormatter)
+    parser.add_argument('-f', '--file_name', default=None, help='The image file name to use e.g. Gourds2.jpg.')
+    parser.add_argument('-sx', default=200, type=int, help='Size in the X-direction')
+    parser.add_argument('-sy', default=200, type=int, help='Size in the Y-direction')
+    parser.add_argument('-w', default=-1, type=to_int_range,
+                        help='The  sinc interpolator to use. -1 turns off interpolation.')
+    args = parser.parse_args()
+    return args.file_name, args.sx, args.sy, args.w
+
+
+def main():
+    new_size = [0, 0, 1]
+
+    fn, new_size[0], new_size[1], window_function = get_program_parameters()
+    if fn:
+        fp = Path(fn)
+        file_check = True
+        if not fp.is_file():
+            print(f'Missing image file: {fp}.')
+            file_check = False
+        if not file_check:
+            return
+    else:
+        fp = None
+
+    colors = vtkNamedColors()
+
+    if fp:
+        # Read texture file.
+        reader: vtkImageReader2Factory = vtkImageReader2Factory().CreateImageReader2(str(fp))
+        reader.file_name = fp
+        image_data = reader.update().output
+    else:
+        draw_color1 = colors.GetColor3ub('Gray')
+        draw_color2 = colors.GetColor3ub('Aquamarine')
+        draw_color3 = colors.GetColor3ub('Violet')
+
+        canvas_source = vtkImageCanvasSource2D(extent=(0, 100, 0, 100, 0, 0), number_of_scalar_components=3)
+        canvas_source.draw_color = tuple(draw_color1)
+        canvas_source.FillBox(0, 100, 0, 100)
+        canvas_source.draw_color = tuple(draw_color2)
+        canvas_source.FillTriangle(10, 10, 25, 10, 25, 25)
+        canvas_source.draw_color = tuple(draw_color3)
+        canvas_source.FillTube(75, 75, 0, 75, 5.0)
+        image_data = canvas_source.update().output
+
+    interpolator = vtkImageSincInterpolator(use_window_parameter=True)
+    if 0 <= window_function <= 10:
+        interpolator.window_function = window_function
+
+    resize = vtkImageResize(input_data=image_data, output_dimensions=new_size,
+                            interpolator=interpolator, interpolate=True)
+    resize.update()
+
+    print(f'Original dimensions: {image_data.dimensions}')
+    print(f'Resized dimensions:  {resize.output.dimensions}')
+    if window_function < 0:
+        resize.interpolate = False
+        print(f'Using nearest neighbor interpolation.')
+    else:
+        print(f'Using window function : {interpolator.GetWindowFunctionAsString()}')
+
+    # Create an image actor to display the image
+    image_actor = vtkImageActor()
+    resize >> image_actor.mapper
+    image_actor.InterpolateOff()
+
+    # Setup renderer
+    renderer = vtkRenderer(background=colors.GetColor3d('Burlywood'))
+    renderer.AddActor(image_actor)
+    renderer.ResetCamera()
+    if fp:
+        renderer.active_camera.Dolly(5.0)
+    else:
+        renderer.active_camera.Dolly(1.0)
+    renderer.ResetCameraClippingRange()
+
+    # Setup render window
+    render_window = vtkRenderWindow(size=(1280, 1024), window_name='ResizeImage')
+    render_window.AddRenderer(renderer)
+
+    # Setup render window interactor
+    render_window_interactor = vtkRenderWindowInteractor()
+    style = vtkInteractorStyleImage()
+    render_window_interactor.interactor_style = style
+    render_window_interactor.render_window = render_window
+
+    # Render and start interaction
+    render_window.Render()
+    render_window_interactor.Initialize()
+
+    render_window_interactor.Start()
+
+
+if __name__ == '__main__':
+    main()

src/PythonicAPI/Texture/TexturedSphere.py

+#!/usr/bin/env python3
+
+from pathlib import Path
+
+# noinspection PyUnresolvedReferences
+import vtkmodules.vtkInteractionStyle
+# noinspection PyUnresolvedReferences
+import vtkmodules.vtkRenderingOpenGL2
+from vtkmodules.vtkCommonColor import vtkNamedColors
+from vtkmodules.vtkFiltersSources import vtkTexturedSphereSource
+from vtkmodules.vtkFiltersTexture import vtkTransformTextureCoords
+from vtkmodules.vtkIOImage import vtkImageReader2Factory
+from vtkmodules.vtkRenderingCore import (
+    vtkActor,
+    vtkPolyDataMapper,
+    vtkRenderer,
+    vtkRenderWindow,
+    vtkRenderWindowInteractor,
+    vtkTexture,
+)
+
+
+def get_program_parameters():
+    def to_float_range(x):
+        try:
+            x = float(x)
+        except ValueError:
+            raise argparse.ArgumentTypeError(f'This value: {x} is not a floating-point literal')
+        if abs(x) < 0.0 or abs(x) > 1.0:
+            raise argparse.ArgumentTypeError(f'The absolute value of {x} must be in the range [0...1]')
+        return x
+
+    import argparse
+    description = 'TexturedSphere.'
+    epilogue = '''
+    '''
+    parser = argparse.ArgumentParser(description=description, epilog=epilogue,
+                                     formatter_class=argparse.RawDescriptionHelpFormatter)
+    parser.add_argument('file_name', help='The texture(.png/.ppm) file name to use e.g. earth.ppm.')
+    parser.add_argument('-t', '--translate', type=to_float_range, default=0.25, help='Translation for the x-direction.')
+    args = parser.parse_args()
+    return args.file_name, args.translate
+
+
+def main():
+    translate = [0.0] * 3
+
+    fn, translate[0] = get_program_parameters()
+    fp = Path(fn)
+    file_check = True
+    if not fp.is_file():
+        print(f'Missing image file: {fp}.')
+        file_check = False
+    elif not fp.suffix.lower() in ['.ppm', '.png']:
+        file_check = False
+        print(f'Bad extension: only .ppm or .png extensions are allowed.')
+    if not file_check:
+        return
+
+    print(f'Translate: ({fmt_floats(translate)})')
+    colors = vtkNamedColors()
+
+    # Create a sphere with texture coordinates
+    source = vtkTexturedSphereSource(theta_resolution=100, phi_resolution=100)
+
+    # Read texture file.
+    reader: vtkImageReader2Factory = vtkImageReader2Factory().CreateImageReader2(str(fp))
+    reader.file_name = fp
+
+    # Create the texture.
+    texture = vtkTexture()
+    reader >> texture
+
+    transform_texture = vtkTransformTextureCoords(position=translate)
+
+    mapper = vtkPolyDataMapper()
+    source >> transform_texture >> mapper
+
+    actor = vtkActor(mapper=mapper)
+    actor.SetTexture(texture)
+
+    renderer = vtkRenderer(background=colors.GetColor3d('Black'))
+    renderer.AddActor(actor)
+
+    render_window = vtkRenderWindow(window_name='TexturedSphere')
+    render_window.AddRenderer(renderer)
+
+    renderer.ResetCamera()

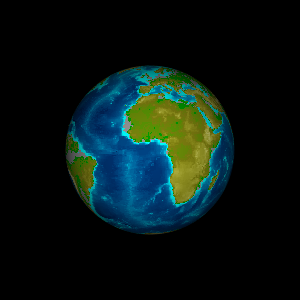

+    # Orient so we are directly above Null Island!
+    # The location is at (0°N 0°E), i.e., where the
+    #  prime meridian and the equator intersect.
+    renderer.active_camera.Elevation(-90)
+
+    ren_win_interactor = vtkRenderWindowInteractor()
+    ren_win_interactor.render_window = render_window
+
+    render_window.Render()
+    ren_win_interactor.Start()
+
+
+def fmt_floats(v, w=0, d=6, pt='g'):
+    """
+    Pretty print a list or tuple of floats.
+
+    :param v: The list or tuple of floats.
+    :param w: Total width of the field.
+    :param d: The number of decimal places.
+    :param pt: The presentation type, 'f', 'g' or 'e'.
+    :return: A string.
+    """
+    pt = pt.lower()
+    if pt not in ['f', 'g', 'e']:
+        pt = 'f'
+    return ', '.join([f'{element:{w}.{d}{pt}}' for element in v])
+
+
+if __name__ == '__main__':
+    main()
