Merge branch 'Add-TransientHDFReader.py' into 'master'

Add transient hdf reader.py

See merge request !313

src/Cxx.md

@@ -69,7 +69,7 @@ If you are new to VTK then these [tutorials](#tutorial) will help to get you sta
 [ReadSTL](/Cxx/IO/ReadSTL) | Read stereo lithography STL (.stl) files
 [ReadTextFile](/Cxx/IO/ReadTextFile) | Read a plain text file into a polydata.
 [SimplePointsReader](/Cxx/IO/SimplePointsReader) | Read a simple "xyz" file of points.
-[TransientHDFReader](/Cxx/IO/TransientHDFReader) | Read transient data writen within a vtkhdf file.
+[TransientHDFReader](/Cxx/IO/TransientHDFReader) | Read transient data written inside a vtkhdf file.

 ###### Importers


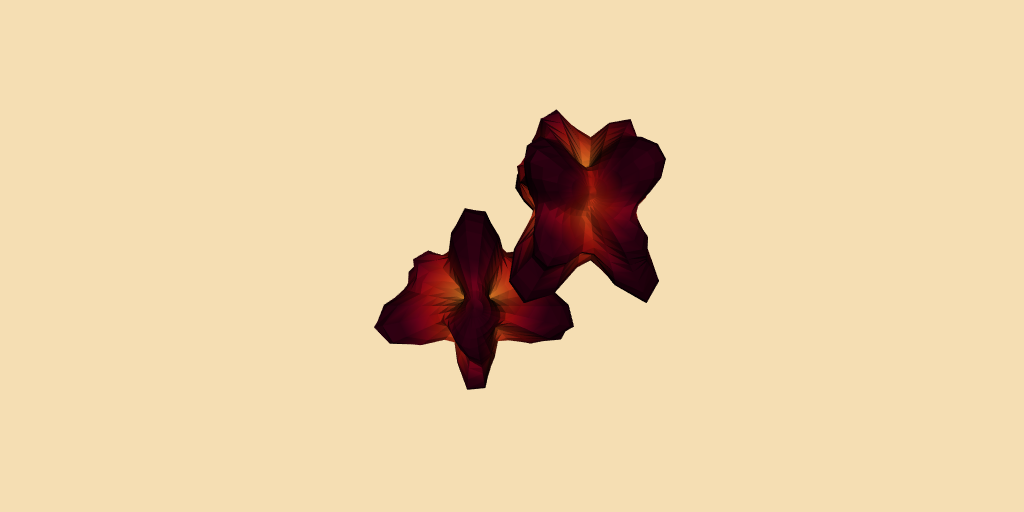

src/Cxx/IO/TransientHDFReader.cxx

@@ -33,14 +33,14 @@ int main(int ac, char** av)

   vtkNew<vtkNamedColors> colors;

-  // Read the dataset
+  // Read the dataset.
   vtkNew<vtkHDFReader> reader;
   reader->SetFileName(av[1]);
   reader->Update();
   std::cout << "number of steps: " << reader->GetNumberOfSteps() << endl;
   auto polydata = vtkPolyData::SafeDownCast(reader->GetOutput());

-  // Render the dataset
+  // Render the dataset.
   vtkNew<vtkPolyDataMapper> mapper;
   mapper->SetInputData(polydata);
   mapper->SetLookupTable(GetCTF());
@@ -58,14 +58,15 @@ int main(int ac, char** av)
   vtkNew<vtkRenderWindow> renWin;
   renWin->AddRenderer(renderer);
   renWin->SetWindowName("TransientHDFReader");
+  renWin->SetSize(1024, 512);
   renWin->Render();

-  // Add the animation callback
+  // Add the animation callback.
   vtkNew<vtkCallbackCommand> command;
   command->SetCallback(&Animate);
   command->SetClientData(reader);

-  // Add the interactor
+  // Add the interactor.
   vtkNew<vtkRenderWindowInteractor> iren;
   iren->SetRenderWindow(renWin);
   iren->AddObserver(vtkCommand::TimerEvent, command);

src/Python.md

@@ -48,6 +48,8 @@ If you are new to VTK then these [tutorials](#tutorial) will help to get you sta
 [ReadSTL](/Python/IO/ReadSTL) | Read an STL file.
 [ReadUnstructuredGrid](/Python/IO/ReadUnstructuredGrid) | Using vtkUnstructuredGridReader to read a (legacy) *.vtk file
 [ReadVTP](/Python/IO/ReadVTP) | Read a VTK XML PolyData file.
+[TransientHDFReader](/Python/IO/TransientHDFReader) | Read transient data written inside a vtkhdf file.
+

 ###### Importers


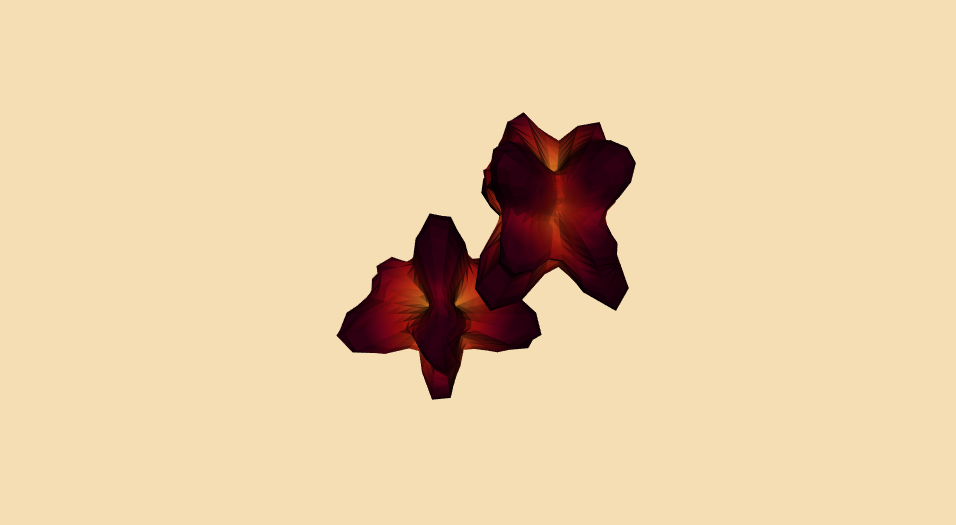

src/Python/IO/TransientHDFReader.md

+### Description
+
+That example uses a feature of vtk_hdf5 that is only available in [vtk/master](https://gitlab.kitware.com/vtk/vtk) and will be released with VTK 9.3. See [this blog post](https://www.kitware.com/how-to-write-time-dependent-data-in-vtkhdf-files/) for more information.

src/Python/IO/TransientHDFReader.py

+#!/usr/bin/env python3
+
+# noinspection PyUnresolvedReferences
+import vtkmodules.vtkRenderingContextOpenGL2
+from vtkmodules.vtkCommonColor import vtkNamedColors
+from vtkmodules.vtkIOHDF import vtkHDFReader
+from vtkmodules.vtkInteractionStyle import vtkInteractorStyleTrackballCamera
+from vtkmodules.vtkRenderingCore import (
+    vtkActor,
+    vtkDiscretizableColorTransferFunction,
+    vtkPolyDataMapper,
+    vtkRenderWindow,
+    vtkRenderWindowInteractor,
+    vtkRenderer
+)
+
+
+def get_program_parameters():
+    import argparse
+    description = 'Read transient data writen inside a vtkhdf file.'
+    epilogue = ''''''
+    parser = argparse.ArgumentParser(description=description, epilog=epilogue,
+                                     formatter_class=argparse.RawDescriptionHelpFormatter)
+    parser.add_argument('file_name', help='warping_spheres.vtkhdf')
+    args = parser.parse_args()
+    return args.file_name
+
+
+def main():
+    fn = get_program_parameters()
+
+    colors = vtkNamedColors()
+
+    # Read the dataset
+    reader = vtkHDFReader()
+    reader.SetFileName(fn)
+    reader.Update()
+    print('number of steps: ', reader.GetNumberOfSteps())
+    polydata = reader.GetOutput()
+
+    # Render the dataset
+    mapper = vtkPolyDataMapper()
+    mapper.SetInputData(polydata)
+    mapper.SetLookupTable(get_ctf())
+    mapper.SetScalarModeToUsePointFieldData()
+    mapper.SelectColorArray('SpatioTemporalHarmonics')
+
+    actor = vtkActor()
+    actor.SetMapper(mapper)
+
+    renderer = vtkRenderer()
+    renderer.SetBackground(colors.GetColor3d('Wheat'))
+    renderer.UseHiddenLineRemovalOn()
+    renderer.AddActor(actor)
+
+    ren_win = vtkRenderWindow()
+    ren_win.AddRenderer(renderer)
+    ren_win.SetWindowName('TransientHDFReader')
+    ren_win.SetSize(1024, 512)
+    ren_win.Render()
+
+    # Add the interactor
+    iren = vtkRenderWindowInteractor()
+    iren.SetRenderWindow(ren_win)
+    iren.CreateRepeatingTimer(50)
+    # Add the animation callback
+    observer = AnimationObserver(iren, reader)
+    iren.AddObserver('TimerEvent', observer)
+
+    i_style = vtkInteractorStyleTrackballCamera()
+    iren.SetInteractorStyle(i_style)
+
+    iren.Start()
+
+
+def get_ctf():
+    ctf = vtkDiscretizableColorTransferFunction()
+    ctf.SetColorSpaceToLab()
+    ctf.SetScaleToLinear()
+
+    ctf.AddRGBPoint(-30.3399130649763, 0.0862745098039216, 0.00392156862745098, 0.298039215686275)
+    ctf.AddRGBPoint(-29.3502559661865, 0.113725, 0.0235294, 0.45098)
+    ctf.AddRGBPoint(-28.5283393859863, 0.105882, 0.0509804, 0.509804)
+    ctf.AddRGBPoint(-27.958028793335, 0.0392157, 0.0392157, 0.560784)
+    ctf.AddRGBPoint(-27.4044914245605, 0.0313725, 0.0980392, 0.6)
+    ctf.AddRGBPoint(-26.8677291870117, 0.0431373, 0.164706, 0.639216)
+    ctf.AddRGBPoint(-26.096134185791, 0.054902, 0.243137, 0.678431)
+    ctf.AddRGBPoint(-25.0729293823242, 0.054902, 0.317647, 0.709804)
+    ctf.AddRGBPoint(-23.8148933330084, 0.0509804, 0.396078, 0.741176)
+    ctf.AddRGBPoint(-22.9992658665124, 0.0392157, 0.466667, 0.768627)
+    ctf.AddRGBPoint(-22.1836384000164, 0.0313725, 0.537255, 0.788235)
+    ctf.AddRGBPoint(-21.3323650360107, 0.0313725, 0.615686, 0.811765)
+    ctf.AddRGBPoint(-20.4601268768311, 0.0235294, 0.709804, 0.831373)
+    ctf.AddRGBPoint(-19.5878868103027, 0.0509804, 0.8, 0.85098)
+    ctf.AddRGBPoint(-18.8666133880615, 0.0705882, 0.854902, 0.870588)
+    ctf.AddRGBPoint(-18.1956596374512, 0.262745, 0.901961, 0.862745)
+    ctf.AddRGBPoint(-17.6085758209229, 0.423529, 0.941176, 0.87451)
+    ctf.AddRGBPoint(-16.7027893066406, 0.572549, 0.964706, 0.835294)
+    ctf.AddRGBPoint(-16.0989303588867, 0.658824, 0.980392, 0.843137)
+    ctf.AddRGBPoint(-15.6628112792969, 0.764706, 0.980392, 0.866667)
+    ctf.AddRGBPoint(-15.1931447982788, 0.827451, 0.980392, 0.886275)
+    ctf.AddRGBPoint(-14.2705841064453, 0.913725, 0.988235, 0.937255)
+    ctf.AddRGBPoint(-13.9854288101196, 1, 1, 0.972549019607843)
+    ctf.AddRGBPoint(-13.7002735137939, 0.988235, 0.980392, 0.870588)
+    ctf.AddRGBPoint(-13.2809276580811, 0.992156862745098, 0.972549019607843, 0.803921568627451)
+    ctf.AddRGBPoint(-12.9622249603271, 0.992157, 0.964706, 0.713725)
+    ctf.AddRGBPoint(-12.4254627227783, 0.988235, 0.956863, 0.643137)
+    ctf.AddRGBPoint(-11.5699977874756, 0.980392, 0.917647, 0.509804)
+    ctf.AddRGBPoint(-10.8487224578857, 0.968627, 0.87451, 0.407843)
+    ctf.AddRGBPoint(-10.1106739044189, 0.94902, 0.823529, 0.321569)
+    ctf.AddRGBPoint(-9.57391166687012, 0.929412, 0.776471, 0.278431)
+    ctf.AddRGBPoint(-8.78554153442383, 0.909804, 0.717647, 0.235294)
+    ctf.AddRGBPoint(-8.08104133605957, 0.890196, 0.658824, 0.196078)
+    ctf.AddRGBPoint(-7.50234400308847, 0.878431, 0.619608, 0.168627)
+    ctf.AddRGBPoint(-6.68671653659248, 0.870588, 0.54902, 0.156863)
+    ctf.AddRGBPoint(-5.87108907009648, 0.85098, 0.47451, 0.145098)
+    ctf.AddRGBPoint(-5.05546160360049, 0.831373, 0.411765, 0.133333)
+    ctf.AddRGBPoint(-4.23983413710449, 0.811765, 0.345098, 0.113725)
+    ctf.AddRGBPoint(-3.4242066706085, 0.788235, 0.266667, 0.0941176)
+    ctf.AddRGBPoint(-2.6085792041125, 0.741176, 0.184314, 0.0745098)
+    ctf.AddRGBPoint(-1.79295173761651, 0.690196, 0.12549, 0.0627451)
+    ctf.AddRGBPoint(-0.977324271120517, 0.619608, 0.0627451, 0.0431373)
+    ctf.AddRGBPoint(-0.214114964008331, 0.54902, 0.027451, 0.0705882)
+    ctf.AddRGBPoint(0.456838220357895, 0.470588, 0.0156863, 0.0901961)
+    ctf.AddRGBPoint(1.21166050434113, 0.4, 0.00392157, 0.101961)
+    ctf.AddRGBPoint(2.28518559486346, 0.188235294117647, 0, 0.0705882352941176)
+
+    ctf.SetNumberOfValues(46)
+    ctf.DiscretizeOff()
+
+    return ctf
+
+
+class AnimationObserver(object):
+    def __init__(self, interactor, reader):
+        self.interactor = interactor
+        self.reader = reader
+
+    def __call__(self, caller, ev):
+        x = 0 if (self.reader.GetStep() == self.reader.GetNumberOfSteps() - 1) else self.reader.GetStep() + 1
+        self.reader.SetStep(x)
+        print('Current step: ', self.reader.GetStep())
+        self.reader.Update()
+        self.interactor.Render()
+
+
+if __name__ == '__main__':
+    main()
