## VTKHDF: Support for transient data
The `VTKHDF` format now supports transient ImageData and UnstructuredGrid. Given the extent of the changes, the `VTKHDF` major version number has been incremented to 2.

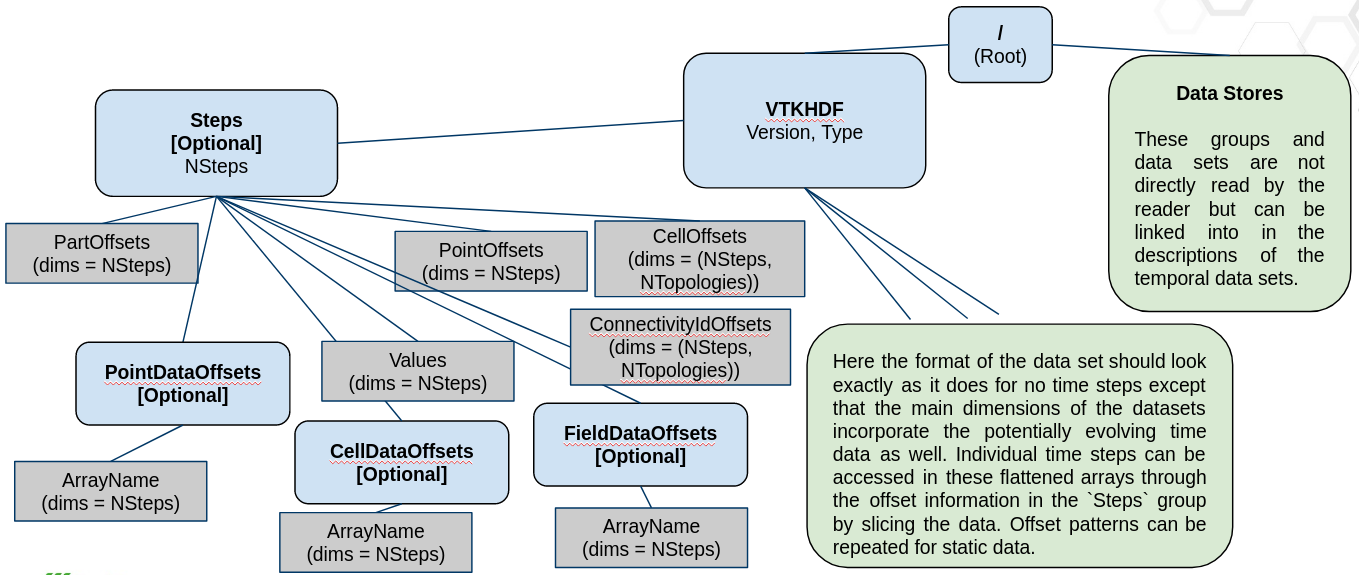

Schematically, the extra `Steps` group that contains metadata dictating how to read the transient data looks like this:
![schema](transient_hdf_schema.png)
Particularities:
* Transient `vtkImageData` have an additional time dimension added to the arrays which should have the following shape [~nSteps, ZDim, YDim, XDim, NComponents] (where the `nSteps` dimension does not necessarily have to have as many entries as time steps and can use the offsetting mechanism to replay data without rewriting it)
* Transient `vtkUnstructuredGrid` have flattened time-space arrays that are read in using the offsetting mechanism
* The `Steps/Values` array holds the time values for each one of the steps
* AMR type structures do not yet support transient data in the format
Specific documentation related to the evolution of the format can be found at [](https://kitware.github.io/vtk-examples/site/VTKFileFormats/).
Documentation/release/dev/transient_hdf_schema.png

203 KiB

......@@ -47,6 +47,10 @@ class vtkUnstructuredGrid;
* vtkDataSet types (image data and unstructured grid are currently
* implemented) and serial as well as parallel processing.
*
* Can also read transient data with directions and offsets present
* in a supplemental 'VTKHDF/Steps' group for vtkUnstructuredGrid and
* vtkImageData.
*
*/
